FrialMaxi controller for led
47C-7-36146
In Stock
€137.80
Tax included
€137.80
Tax included
By buying this product you can collect up to
22
points.
Your cart will total 22
points that can be converted into a voucher of
€1.54.
Order it before 11:30 of Monday and receive it between on 27/12 and 31/12 with Corriere Espresso BRT-GLS-FEDEX Free!
The control unit fades: dawn, day, dusk, night;
Stars fade with shimmer;
Lights houses;
Light solid blue.
Cycle time is adjustable via the outer knob.
FRIALMAXI, power and performance,rests on a range of products semi-professional. Each output can supply up to 15 meters of LED strips or LED spots 12V in addition 36W lighting can be compared to that produced by incandescent lamps over 300W.
It has six outlets, DC, three of which are cross-fading for the implementation of the phases of dawn, day, sunset.
They can be connected LED strips of appropriate colors and accessories LED.
Two sockets are dedicated to the night. One is in the fade-out to connect accessories for a night time effect (MICROFO or MAXIFO for the stars; MICROQL or MICROSC for the moon, and comet). The other outlet night handles night lights (accessories type LC8 for the lights in the houses).
The sixth outlet remains powered on during all phases. Here can be attached a strip of blue leds that create a glowing effect, spectacular, useful in all the phases. In parallel with the led strip can be connected to led for lighting fixed to the Nativity.
The unit is equipped with external power supply.
The output of each stage is equipped with DC socket. To each socket you can connect an accessory. To connect more accessories in the same socket are needed multiple outlets, some of which are supplied.
For those who need to be taken synchronized to 220V, is available SYL (socket synchronized with control LED).
For those who want to synchronize the audio to the cycle, is available when purchasing the following products: 4D-6-2301+ player sounds of your choice.
To project the slides is available PR26.

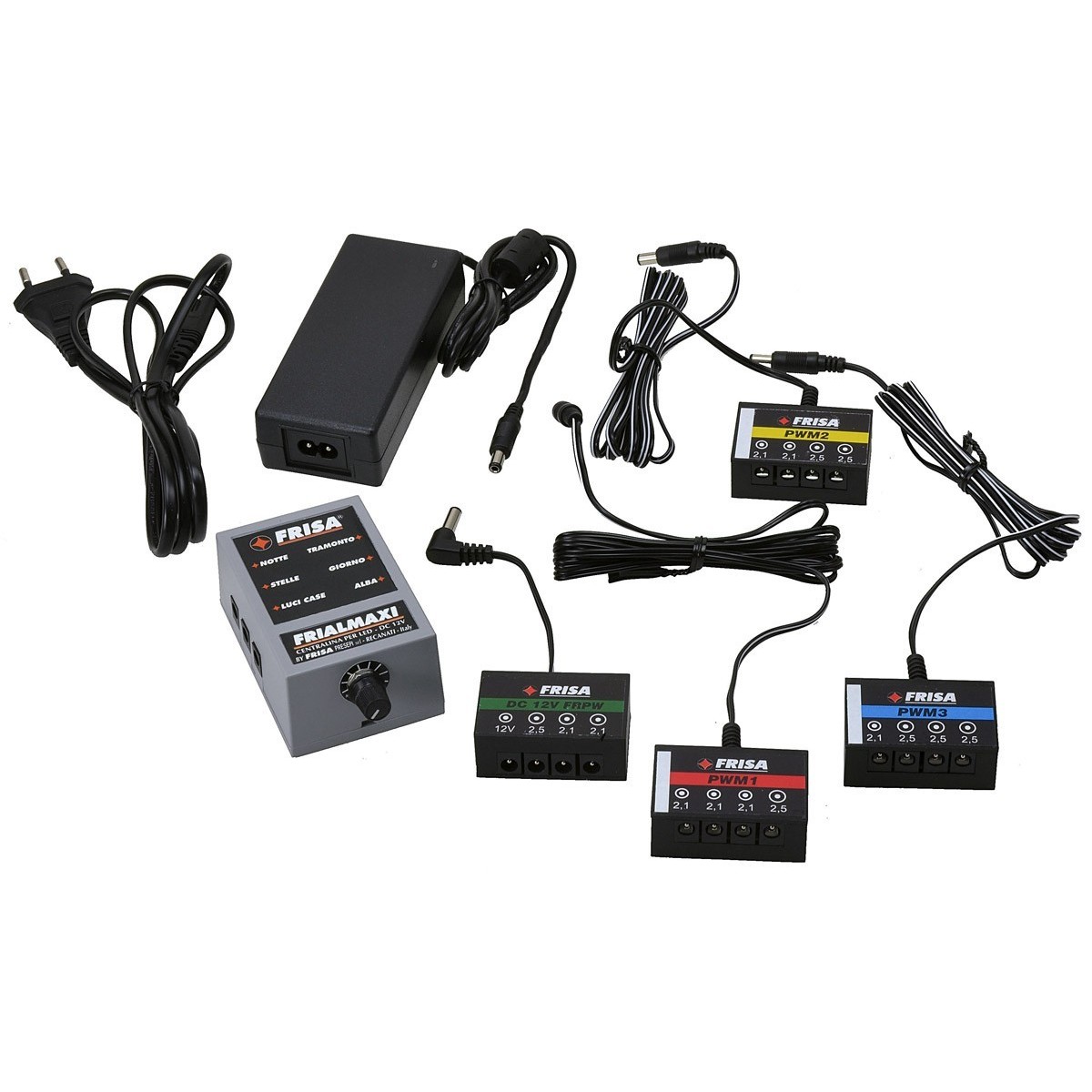

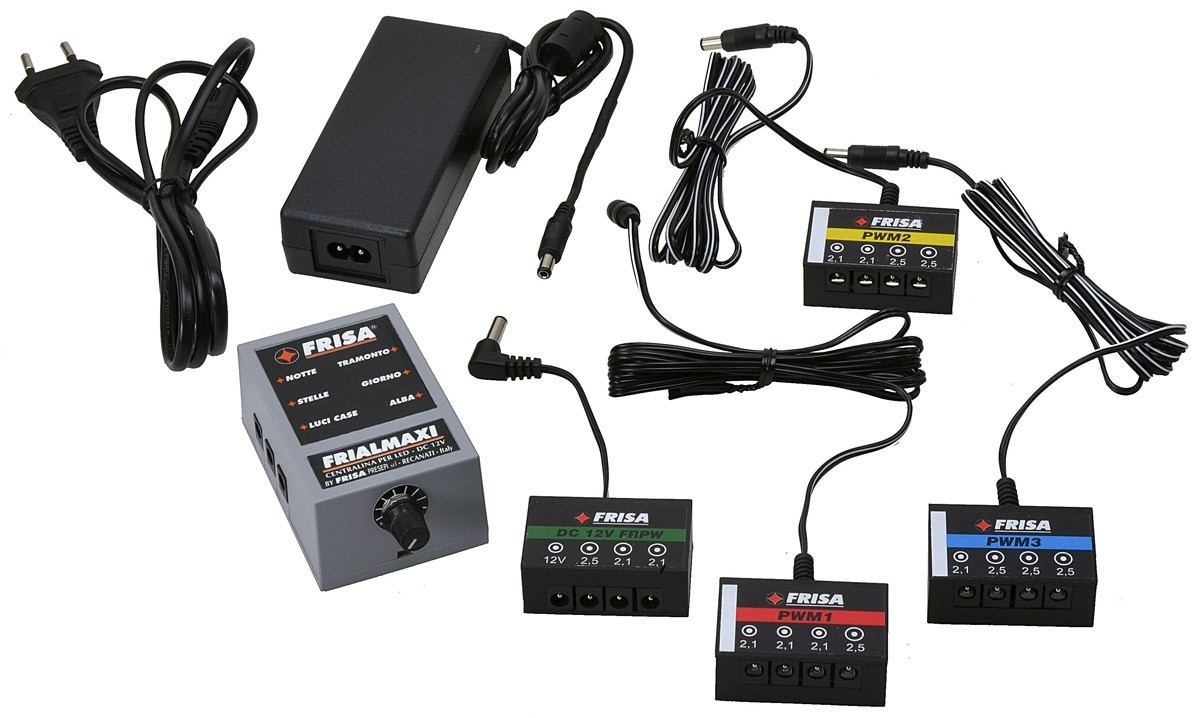

Supplied to the power units:
1 power strip PWM1
1 power strip PWM2
1 power strip PWM3
1 DC Adapter
Power supply 4A
TECHNICAL FEATURES:
Power supply: 12V
Maximum current: 4A
Outputs 12V
Cycle with a duration adjustable 1' - 10'
Sockets DC output: 2.5 mm diameter.
eth
FRIALPOWER
Description
"FRIALPOWER" is a unit of power led aimed to illuminate the Nativity in maximum safety and with surprising results.
On the various outputs, can be connected to strips of more than 200 led and various accessories for a total power of 20W.
It has six outlets, DC, three of which are cross-fading, for the realization of the phases of dawn, day, sunset.
They can be connected led strips of appropriate colors and accessories led.
Two sockets are dedicated to the night. The first is in the fade. It is possible to connect
accessories for night time effect, such as "MICROFO" or "MAXIFO" for stars and "MICROQL" "MICROSC", to the moon, and comet.
The second outlet night handles night lights. In this socket can be connected accessories type "LC8" for the lights of the houses.
The sixth outlet remains powered on during all phases. Here can be attached a strip of blue leds that will create an effect
bright, spectacular, useful in all the phases. In parallel with the led strip can be connected to led for lighting fixed to the Nativity.
The unit is equipped with external power supply and a socket for each phase. To each socket you can connect an accessory.
For connect in socket and accessories, it is necessary to have multiple outlets by choosing among those proposed below (the"PWM1" - "PWM2" - "PWM3").
For those who need sockets of synchronized loads and 220 volt, is available in the article "SYL".
TECHNICAL FEATURES:
Power supply: 230 volt
Outputs low voltage: 6
Total current: 2A
Cycle duration: 2',30"
Jacks diameter: 2.5 mm.
INCLUDED 2 MULTIPLE "PWM1"
NOTE: LED Strips and Accessories are NOT included in the control unit.
- See more at: http://www.frisapresepi.it/dettagli.aspx?cat=83&rel=82&art=748&var=1#sthash.jLhgzHqP.dpufYou can connect the following accessories which are sold separately:
-Led illuminazzione for models Frial - Accessories for modelliFrial
