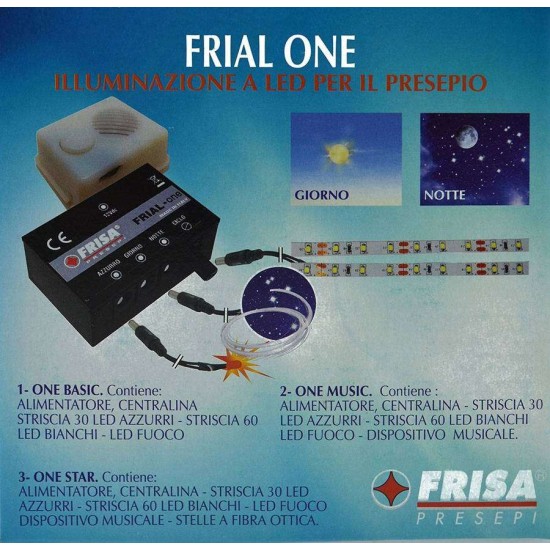

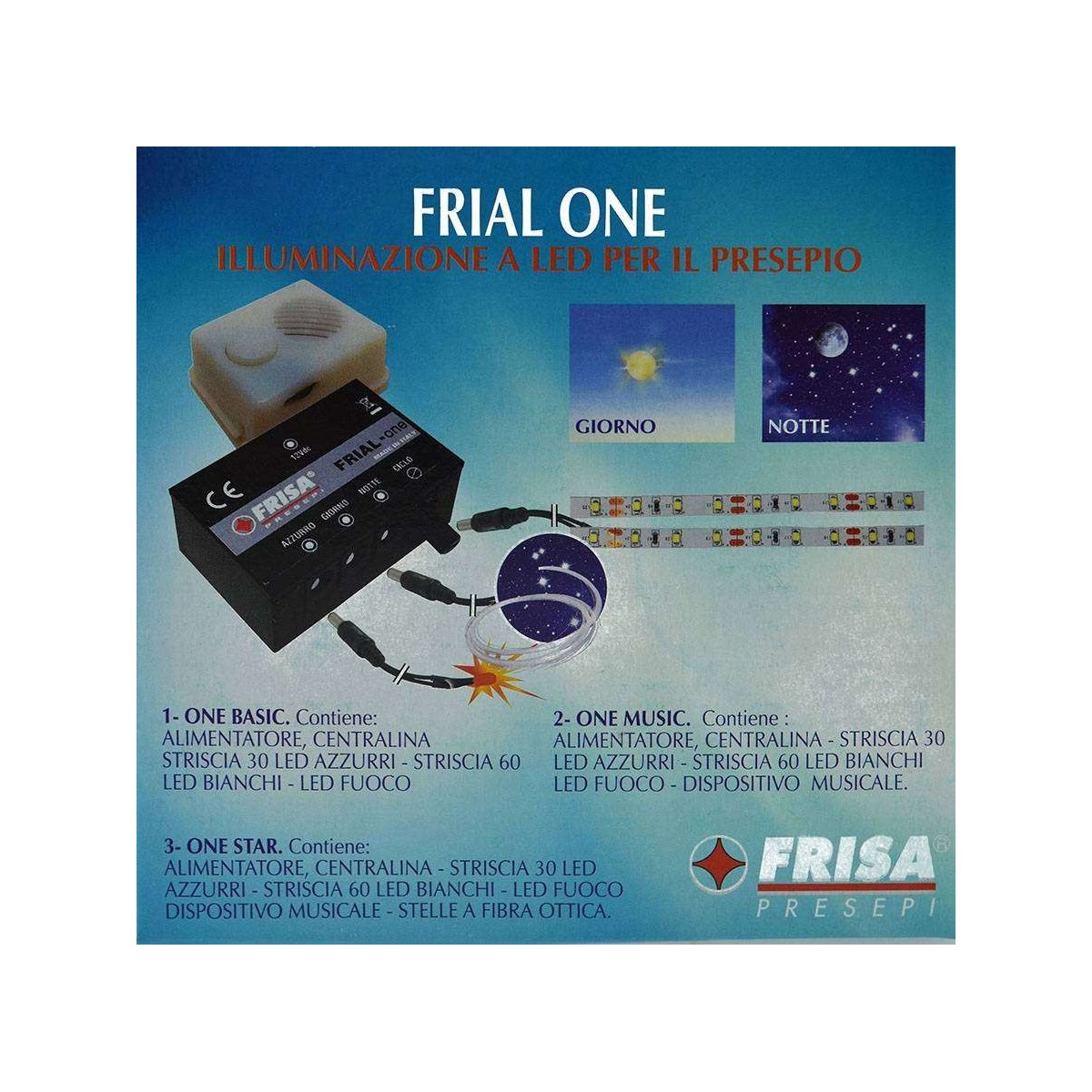

Frial One Star crib control unit with Led strips and optical fiber

Led strips can be connected to it up to a total effective power of 15 W.

It has a socket for connecting the power supply (supplied) and 3 output sockets for connecting strips and / or accessories.

Of these outputs, one is with fixed light, dedicated to the "blue" band, which will always remain in operation, very useful both in the night and in the day phase. One issue is dedicated to the day fade, and the third to the night fade. The regulation of the cycle allows to have a variable duration time from 30 seconds up to 5 minutes.

The control unit is supplied with the power supply, a blue LED strip "PS" series of 30 cm 50 LEDs, 2.4W (effective) equal to a 16W lamp + a warm white LED strip "PS" series of 60 cm 100 LEDs , 4.8 (ACTUAL i) and a fire lED flickering, player sounds, PRL2.5 (double socket useful for connecting the music device), a device with 30 MICROFO star fiber optic, 1 double socket (PRL2.1) for connecting the star device.

The control unit, in addition to what is supplied in the Basic version, is also equipped with an audio device with background music of Christmas music and a double socket for connecting it. The audio device has a power of about 400 mW, which is sufficient for family environments. The volume is adjustable.

A demonstration audio file has been loaded into the audio device. The file can be removed and new files can be uploaded according to your needs or your musical or sound tastes. To remove, modify or upload new files you need to connect the sound player to the PC using the very common USB / MINI USB cables (the cables supplied with mobile phones)

To connect other strips or accessories, it will be necessary to have double sockets (PRL2.5 - PRL2.1) or multiple sockets (PWM1 - PWM2 - PWM3).
